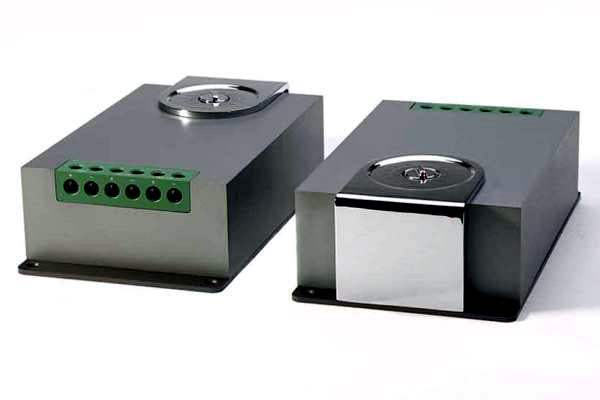

Audiofrog GB415C AUDIOPHILE GRADE PASSIVE CROSSOVER NETWORK
Audiofrog GB415C AUDIOPHILE GRADE PASSIVE CROSSOVER NETWORK
Sale
Sold out

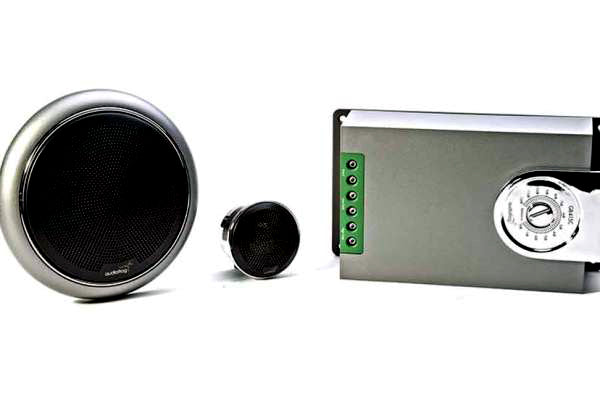

Specifically designed for use with the GB15 and GB40, the GB415C provides high power handling and a seamless transition between woofer and tweeter. A precise L-pad, which keeps the crossover frequency, slope and Q constant over a 12 dB level adjustment range, is included for tweeter tuning.
Share
-
Features
- Air Core Coils
- Polypropylene Capacitors

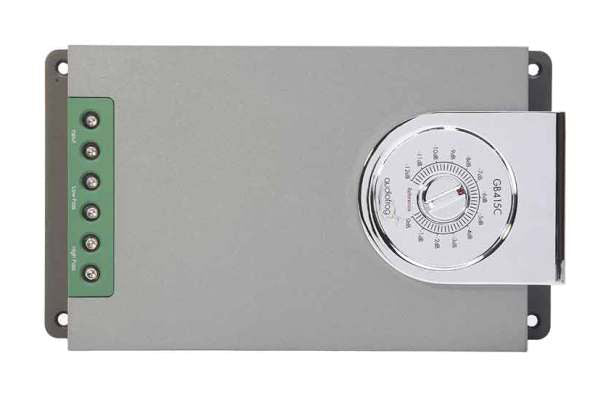

- L-Pad Tweeter Adjustment Circuit
- Tweeter Adjustment Scale Marked in 1/4 dB Increments
- Screw Terminals
- Cast Aluminum Chassis

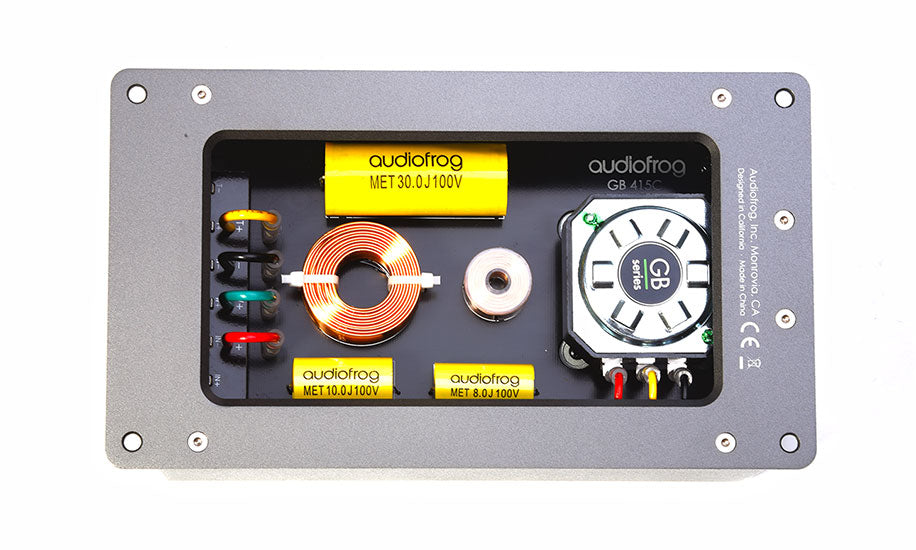

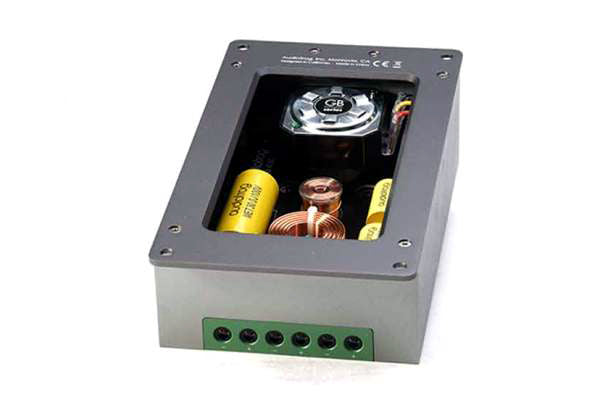

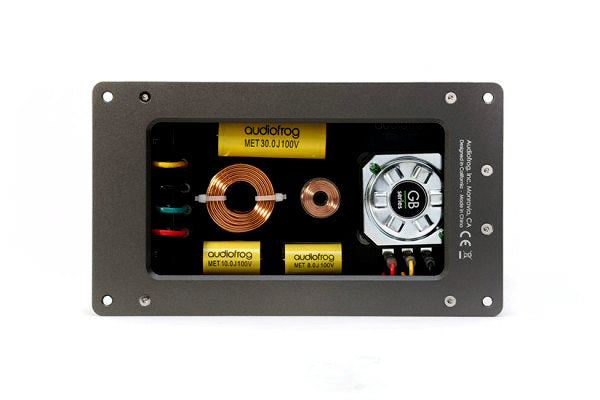

- Clear Component Viewing Window
-
Specifications
- Nominal Impedance: 4 Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 80 Hz – 20 kHz
- Crossover Frequency: 2.2 kHz
- Low Pass Filter: 2nd Order
- High Pass Filter: 3rd Order
- Recommended Amplifier RMS Power Range: 20 W – 100 W
- Recommended High Pass Filter Frequency and Slope: ≥ 110 Hz, ≥ 12 dB/oct
- Reference Tweeter Level Setting: -7 dB
