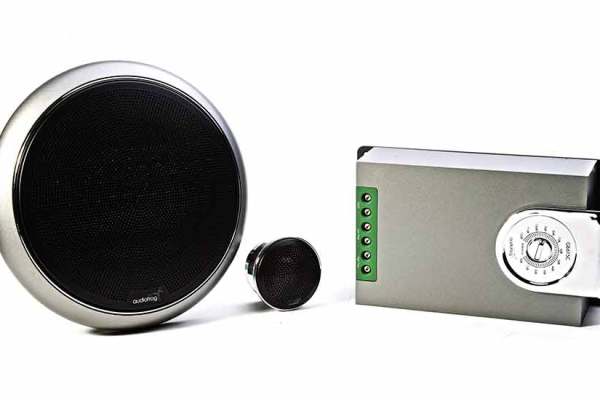

Specifically designed for use with the GB15 and GB60, the GB615C provides high power handling and a seamless transition between woofer and tweeter. A precise L-pad, which keeps the crossover frequency, slope and Q constant over a 12 dB level adjustment range, is included for tweeter tuning.
Share
-
Features
- Air Core Coils
- Polypropylene Capacitors

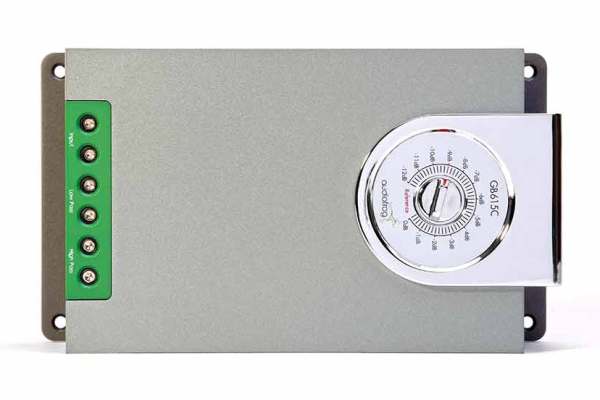

- L-Pad Tweeter Adjustment Circuit
- Tweeter Adjustment Scale Marked in 1/4 dB Increments
- Screw Terminals
- Cast Aluminum Chassis

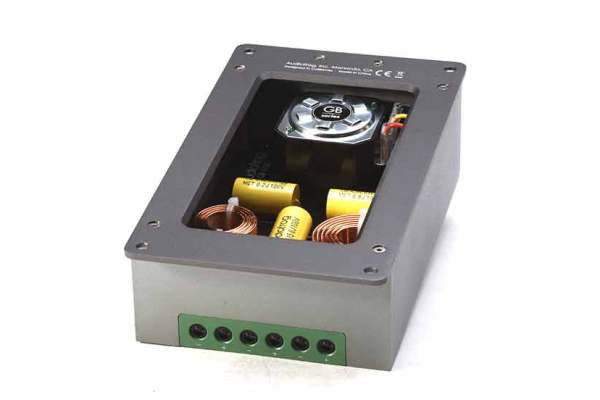

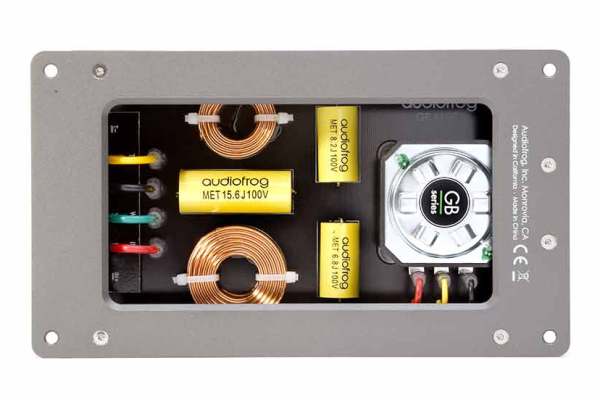

- Clear Component Viewing Window
-
Specifications

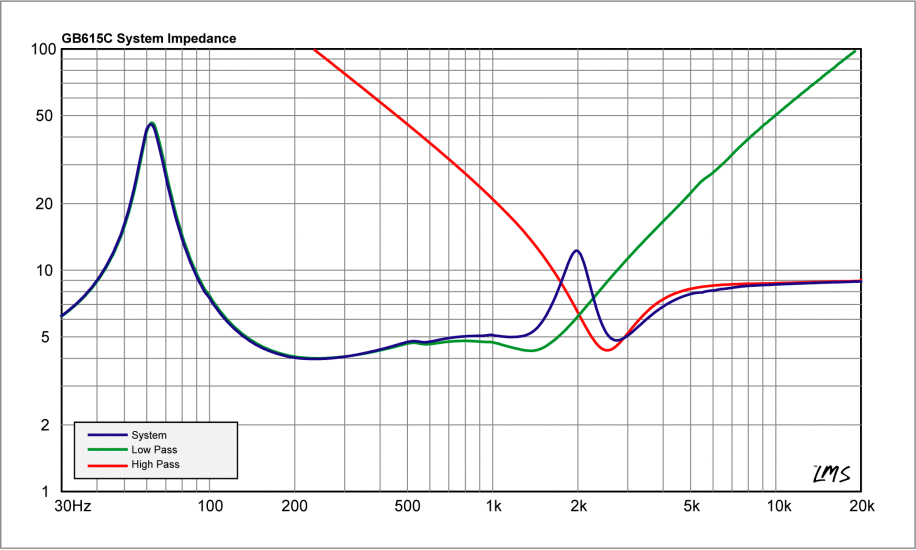

- Nominal Impedance: 4 Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)

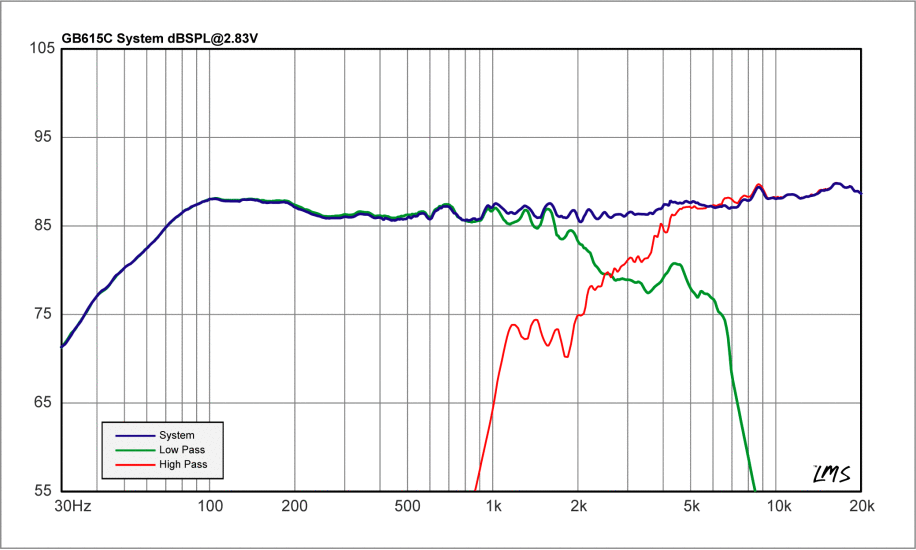

- Frequency Response (-3 dB): 60 Hz – 20 kHz
- Crossover Frequency (-3 dB): 2.2 kHz
- Low Pass Filter: 2nd Order
- High Pass Filter: 3rd Order
- Recommended Amplifier RMS Power Range: 20 W – 100 W
- Recommended High Pass Filter Frequency and Slope: ≥ 70 Hz, ≥ 12 dB/oct
- Reference Tweeter Level Setting: -9 dB
