Audiofrog GS693 6″ x 9″ PREMIUM GRADE AUTOMOTIVE FULL RANGE LOUDSPEAKER
Audiofrog GS693 6″ x 9″ PREMIUM GRADE AUTOMOTIVE FULL RANGE LOUDSPEAKER

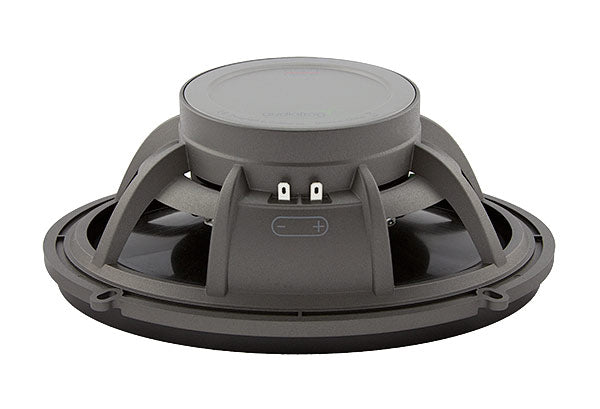

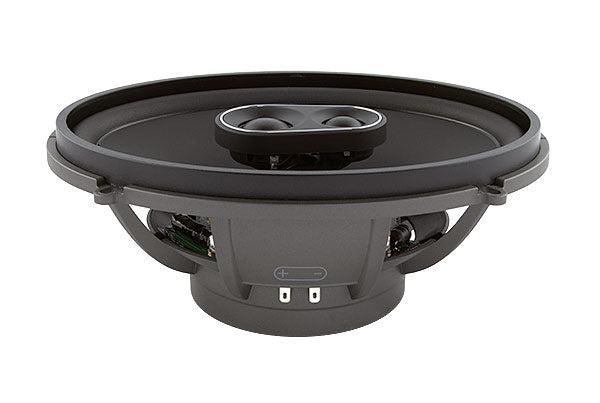

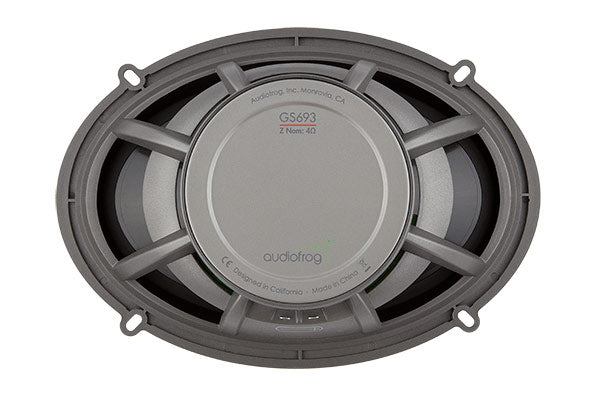

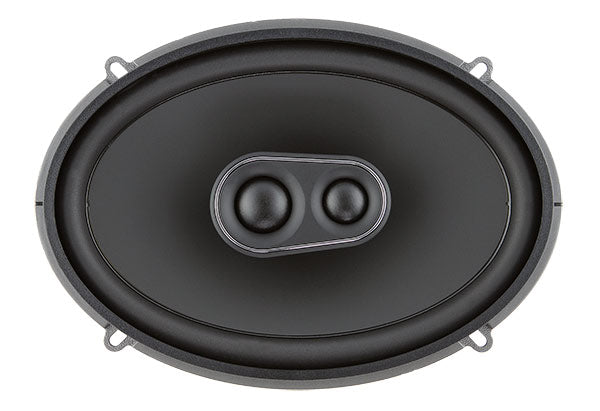

Designed as an easily installed premium upgrade, the GS693 includes a proprietary injection-molded ABS and fiberglass vented basket shallow enough to fit factory door locations when necessary. 1” (25mm) and 3/4“ (20mm) fabric dome tweeters are mounted in a low profile housing designed to fit easily under factory grilles.
The tweeter faceplate includes waveguides designed to boost the tweeters’ low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter.
The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals. The GS693 woofer includes a 1” copper voice coil wound on a Kapton® former for superior power handling.
Share
-
Features
- Injection molded ABS plastic and fiberglass vented basket
- Parabolic polypropylene cone
- Nitrile butadiene rubber surround
- 1” (25mm) copper voice coil on Kapton® former
- Flat progressive Nomex® spider
- Ferrite magnet
- 1” (25mm) and 3/4″ (20mm) fabric dome neodymium tweeters
- Tweeters include reflection absorbing and diffusing foam pad
- Low-profile tweeter waveguide helps to provide smooth transition to the midrange
- Fast-on terminals secured with integrated PC board
- Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)

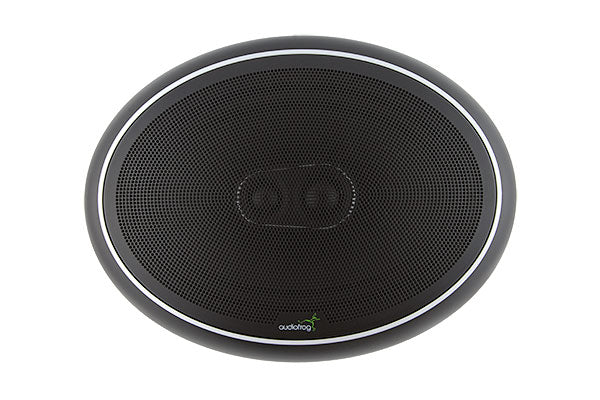

- Grille included
-
Specifications
- Nominal Impedance: 4Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response: 42 Hz – 20 kHz
- Sensitivity (2.83 V/1 M): 92 dB
- Recommended Amplifier RMS Power Range: 15 W – 75 W
Thiele & Small Parameters:
- Revc: 2.31 Ω
- Levc@1kHz: 0.22 mH
- Sd: 221 cm²
- Mmd: 21.6 g
- Mms: 23.46 g
- Cms: 314 µM/N
- Vas: 21.9 liters
- Fs: 58.6 Hz
- BL: 5.43 TM
- Qms: 8.64
- Qes: .068
- Qts: 0.63
- Xmax (1-way linear): 5 mm (7/32”)
- Basket Displacement: 0.42 liters (0.015ft³)
