Zapco

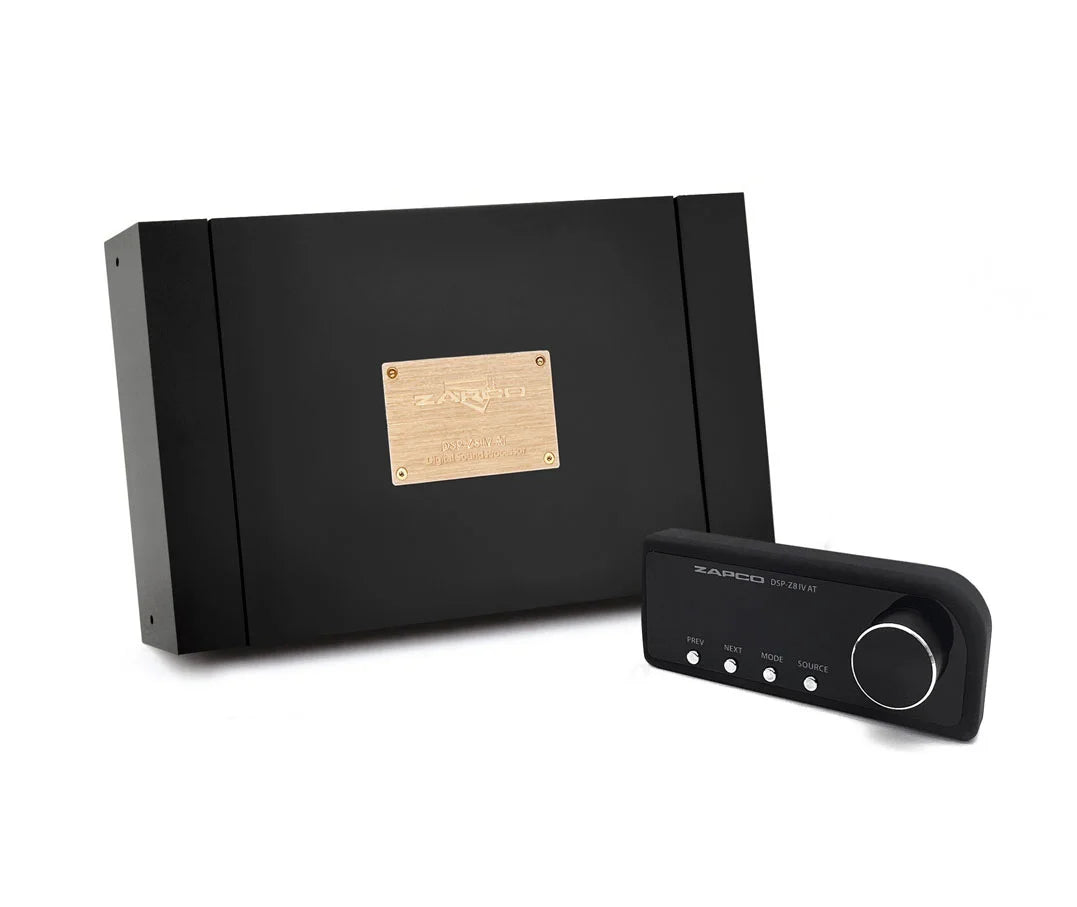

Zapco DSP-Z8 IV AT

Zapco DSP-Z8 IV AT

Regular price Sale price $945.40 CAD
Sale Sold out
View full details
  • Features

  • Specifications

    • DSP Processor: Cirrus Logic CS47048
    • Power: 150 MHz/32 bit/192 KHz
    • 8-Channels IN, 8-Channels OUT
    • ADC: Cirrus Logic CS47048 32 bit/192 KHz
    • ADC Dynamic Range/THD: 108 dB/-98 dB
    • DAC: Cirrus Logic CS8422 24 bit/192 KHz
    • DAC Dynamic Range/THD: 140 dB/-120 dB
    • Low level (Pre)/Sensitivity: 1-5 VRMS
    • High Level (Spk In)/Sens.: 2-20 V
    • Digital Inputs: 24 bit-192 KHz
    • Freq. Response (-3dB): 10 Hz - 22.5 KHz
    • S/N Input: 110 dBA (D) - 106 dBA (A)
    • THD Input: 0,002% (D) - 0,005% (A)
    • Crosstalk at 1 Khz only DSP: 90 dB
    • F/R EQ: 1-6 ch Gr. & Par./31 poles
    • Effect EQ: 7-8 ch Gr. & Par./11 poles
    • Mute/Solo: Yes, each channel
    • Time Align. (Range/Steps): 0/15 ms / 0.02 ms
    • Max Delay (Cm/Steps): 515 cm / 0.68 cm
    • Polarity: 0/180°
    • Remote Control included
    • HD-BT Streaming (with optional HD-BT II-D)
    • Unit Dimensions: 213(W) x 113(L) x 50(H)
