ESB

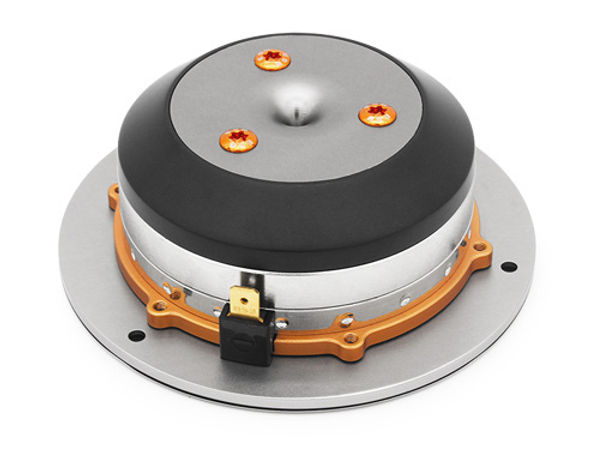

ESB 10.TS mm High-End Silk Dome Tweeter

ESB 10.TS mm High-End Silk Dome Tweeter

Regular price Sale price $6,049.00 CAD
Sale Sold out

Advances in the development of beryllium processing technology, an intense study of the geometric shape of the special oversized inverted dome that incorporates the suspension in a single piece, and our innovative MT-1 motor system, have led to the development of the 10.T tweeter. The 10.T is a tweeter with significantly wider range, lower distortion, greater power handling and higher efficiency than any other available on the market today. Available with beryllium or silk dome.

A huge high grade neodymium magnet was combined with polar plates built of material of very high magnetic permeability. This generates a field of unparalleled magnetic flux, perfectly linear and symmetrical. This means the delicate tweeter coil will always have the same power of magnetic field at any point in its travel, giving a considerable reduction in distortion and an increased ability to reproduce the lowest frequencies in the tweeter’s range.

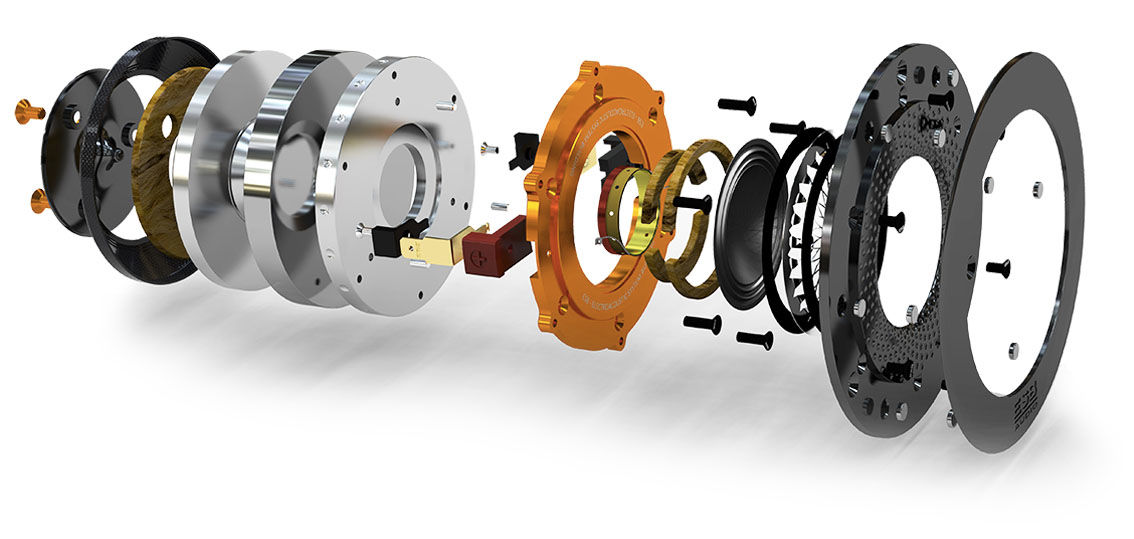

All the parts that make up the tweeter have been made with sophisticated precision control machinery in order to have a precision of assembly and therefore of centering between the voice coil and the magnet with an unimaginable tolerance compared to the other tweeter, a degree of

precision absolutely not within reach of any tweeter that uses plastic parts.

A careful study was also dedicated to the development of the central part of the motor assembly, where the innovative design was able to eliminate any phenomenon of air compression under the very thin beryllium dome. This arrangement avoids any deformation of the dome with obvious benefits of less distortion.

In order to dampen the rear acoustic waves generated by the dome, a carbon bottom has been designed, where its particular exponential shape cancels them by dispersing them laterally, where a special acoustically absorbing material, completes the work.
