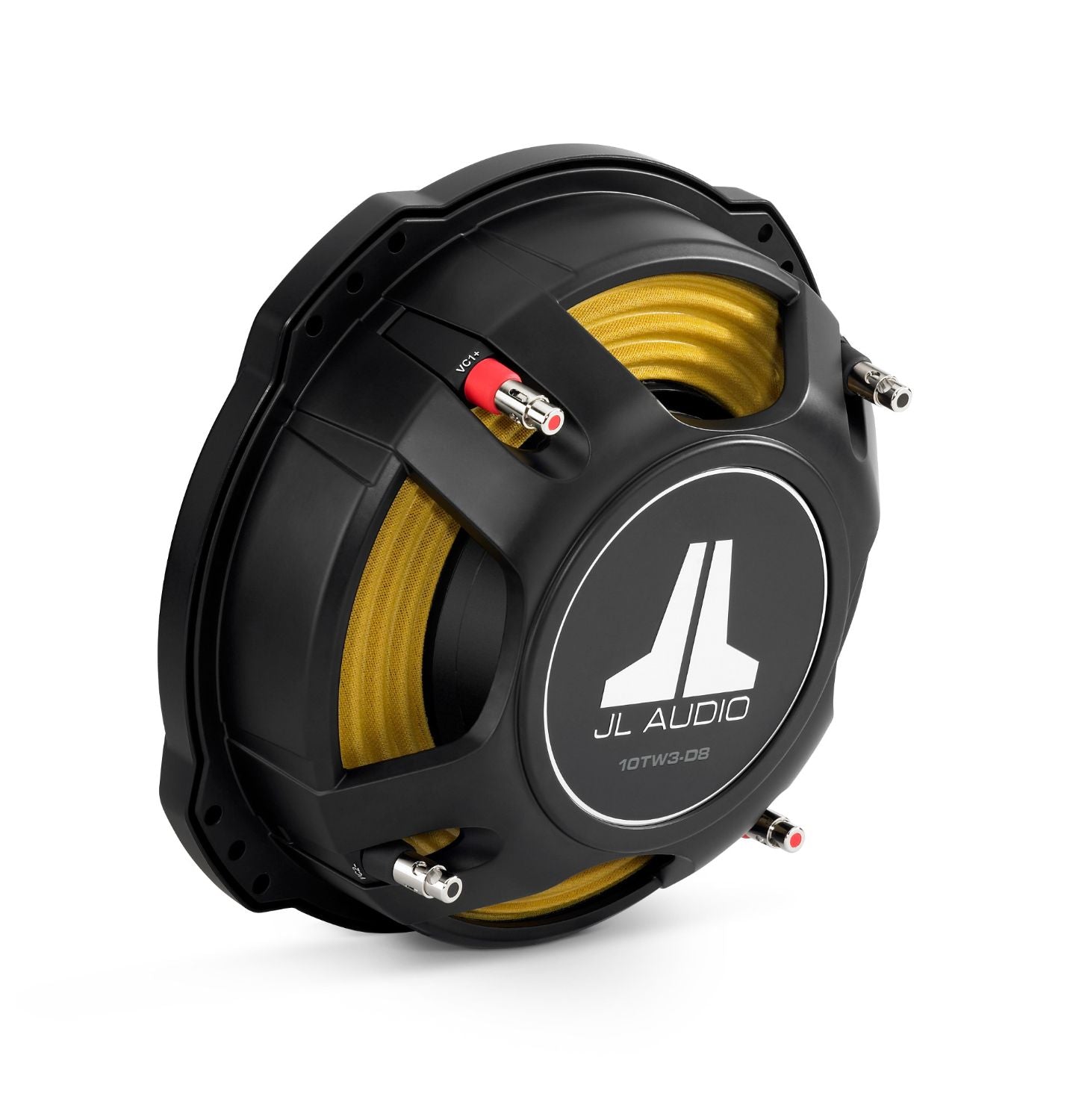

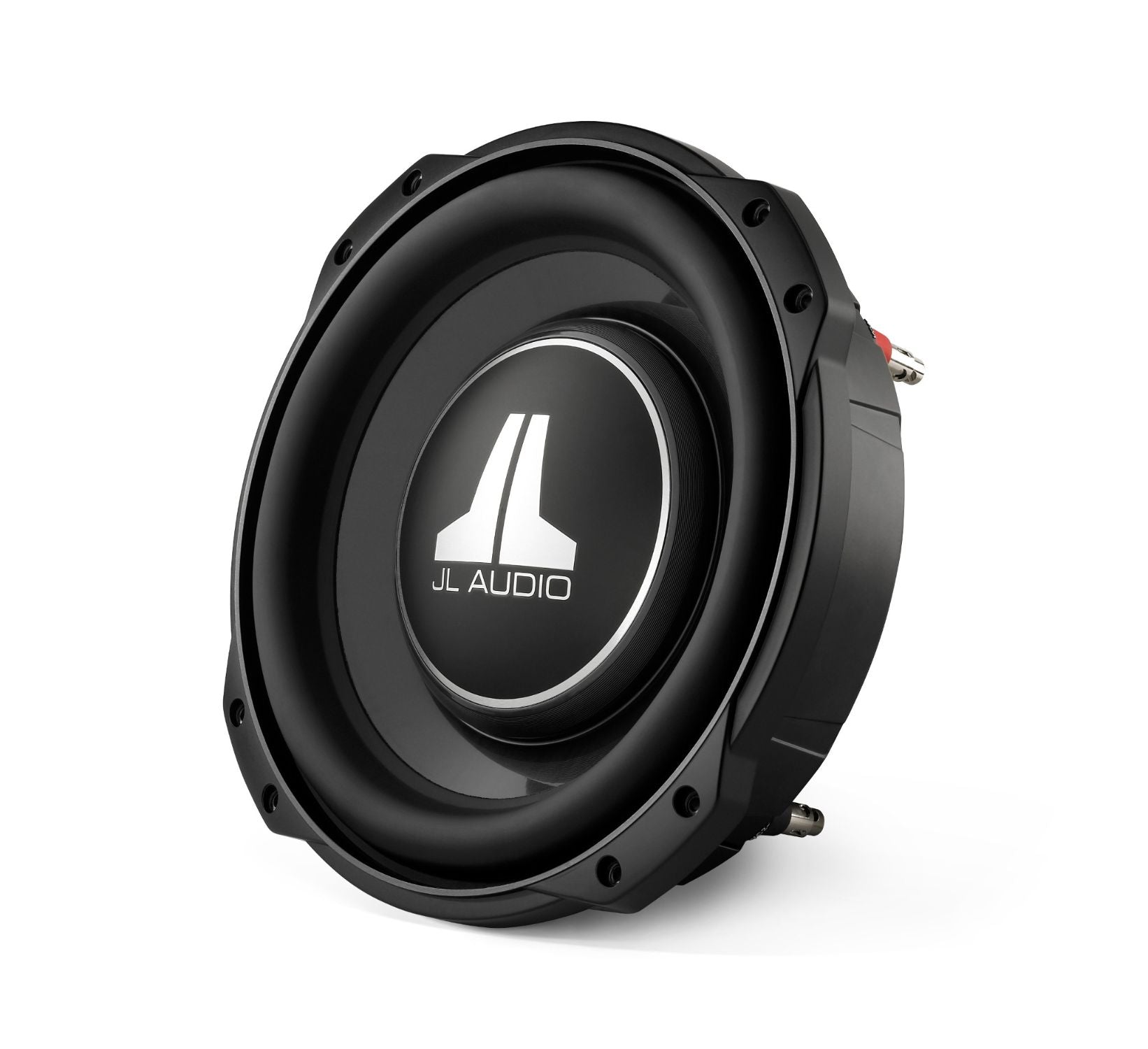

JL Audio 10TW3-D8

JL Audio 10TW3-D8

Regular price Sale price $629.95 CAD
Sale Sold out

The TW3 subwoofers offer very shallow mounting depth and operate in very compact enclosures, making them ideal for challenging
installations requiring excellent output and fidelity. Dual voice coil permits wiring flexibility. Grille receiver is built into frame design
(grille sold separately).

View full details
  • Features

    Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

    To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

    TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers.

    Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.

    • Very shallow mounting depth (3.25 / 3.50 Inches)
    • No pole vent: permits mounting close to rear wall of enclosure.
    • Very small sealed enclosure volume requirements
    • Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
    • DMA-optimized motor designs
    • “concentric tube” architecture
    • Patented “floating cone attach method” technology
    • Cast alloy frame
    • Injection molded, mica-filled polypropylene cone
    • Rubber surround
    • Aluminum-alloy dust cap and rear cap with JL Audio logo
    • Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
  • Specifications

    General Specifications

    Continuous Power Handling (RMS)400 WRecommended Amplifier Power (RMS)200 - 400 WNominal Impedance (Znom)Dual 8 Ω

    ParametersFree Air Resonance (Fs)39.262 HzElectrical “Q” (Qes)0.825Mechanical “Q” (Qms)9.84Total Speaker “Q” (Qts)0.761Equivalent Compliance (Vas)0.510 cu ft / 14.44 LOne-Way Linear Excursion (Xmax)*0.6 in / 15.2 mmReference Efficiency (no)0.23%Efficiency (1 W / 1 m)**82.27 dB SPLEffective Piston Area (Sd)56.532 sq in / 0.0365 sq mDC Resistance (Re)***15.008 Ω

    * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
    ** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
    *** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

    Sealed Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)0.575 cu ft / 16.3 LExternal Width (W)16.75 in / 425 mmExternal Height (H)15 in / 381 mmExternal Depth (D)6.5 in / 165 mmF341.61 HzFc53.93 HzQtc1.0453

    Enclosure Notes
    * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
    * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
    * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
    * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
    * All specifications are subject to change without notice.

    Safety Notice
    Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

    When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.


    Ported Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)0.75 cu ft / 21.2 LExternal Width (W)30 in / 762 mmExternal Height (H)16.375 in / 416 mmExternal Depth (D)5.25 in / 133 mmInternal Slot Port Width (SW)3.75 in / 95 mmInternal Slot Port Height (SH)2.125 in / 54 mmInternal Slot Port Length (SL)26.8125 in / 681 mmPort Extension Length (PL)25 in / 635 mmTuning Frequency (Fb)31.33 HzF329.54 Hz

    Enclosure Notes
    * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
    * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
    * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
    * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
    * All specifications are subject to change without notice.

    Safety Notice
    Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

    When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
