JL Audio

JL Audio HD1200/1

JL Audio HD1200/1

Regular price Sale price $1,949.95 CAD
Sale Sold out

Our highest technology amplifiers feature full-range, Class D circuits with Single Cycle Controlª to deliver audiophile-grade performance and
outstanding efficiency. HD amplifiers also include R.I.P.S. (Regulated, Intelligent Power Supply), advanced thermal management systems and a
full complement of studio-grade signal processing features.

View full details
  • Features

    Monoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω

    Our most powerful HD amplifier employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

    While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

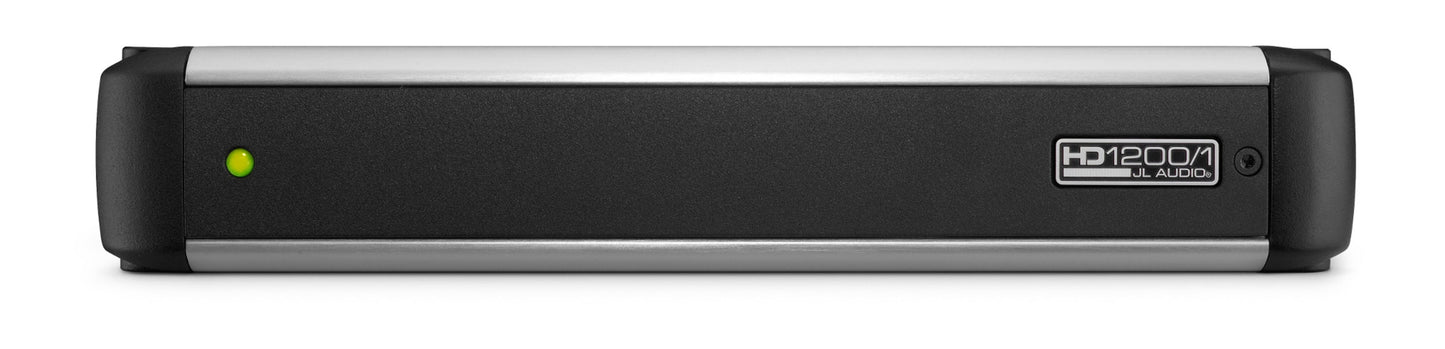

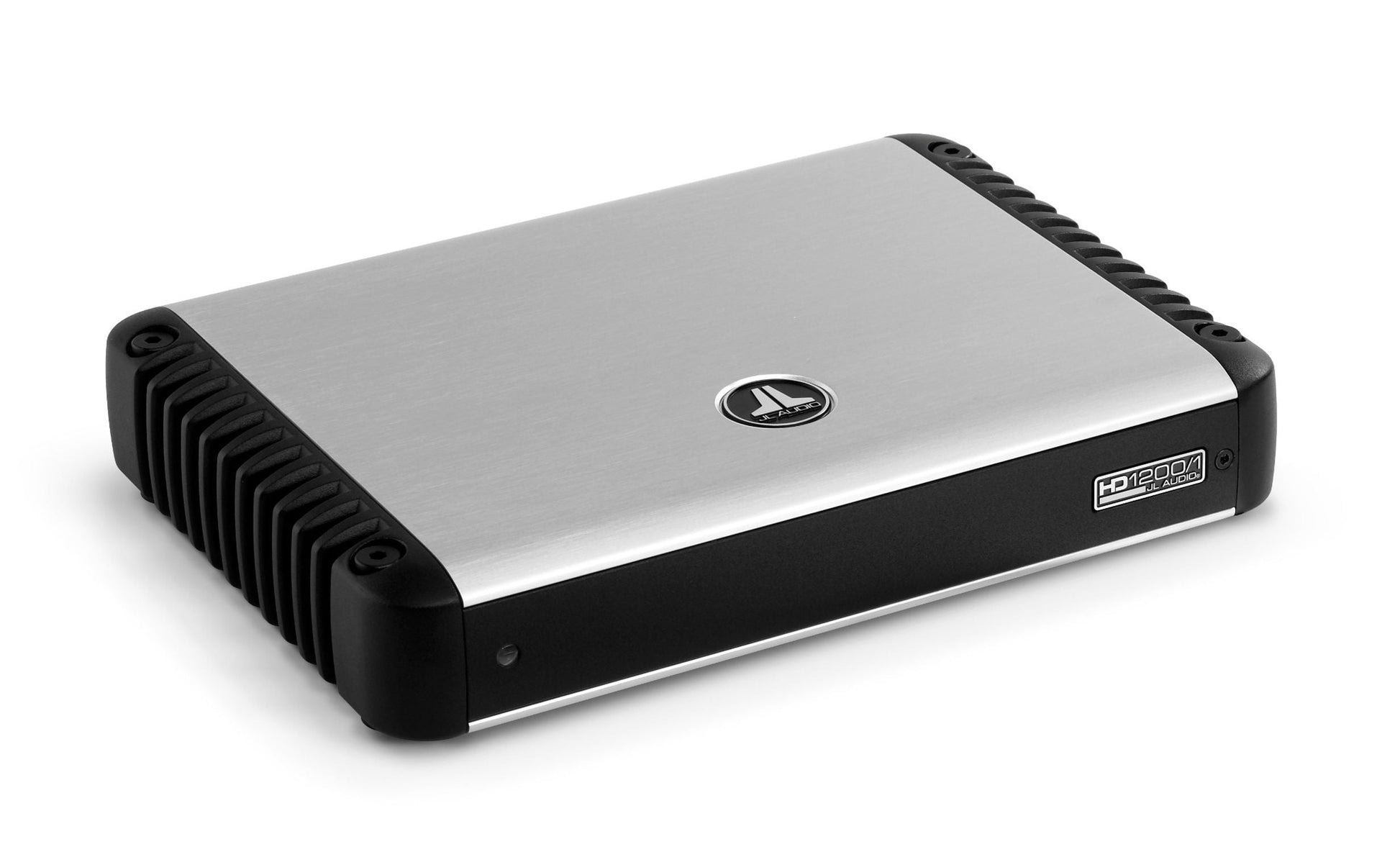

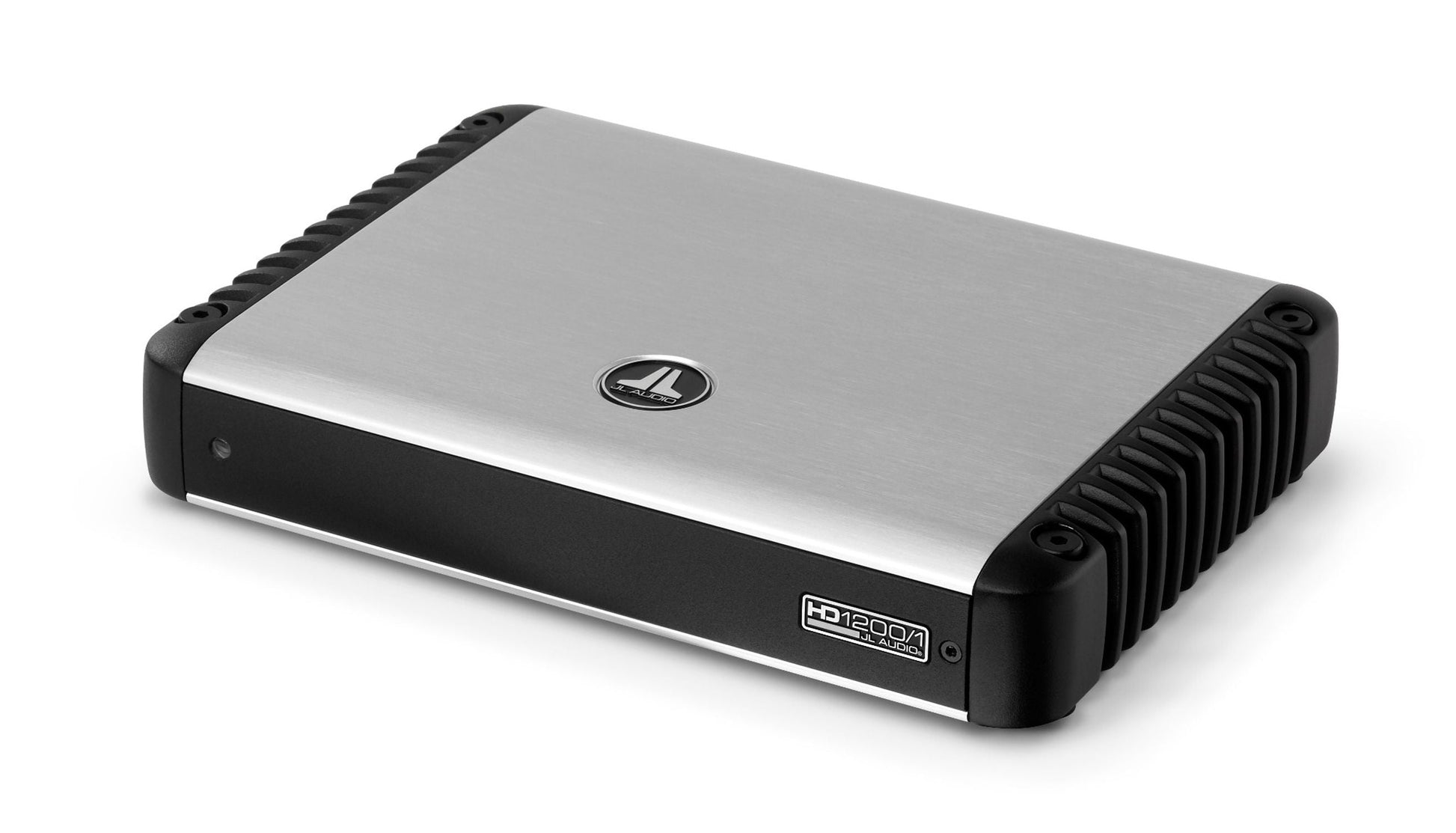

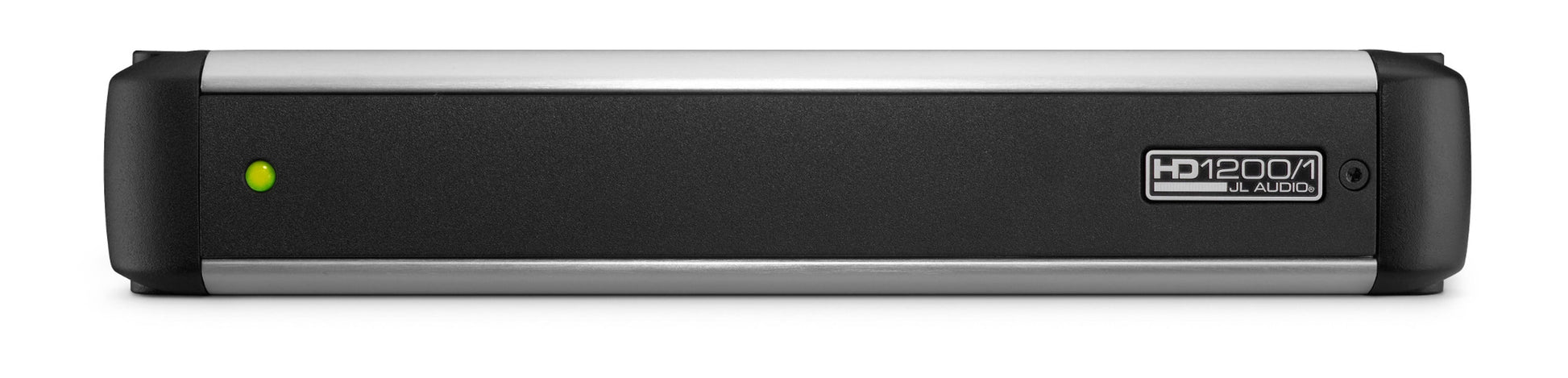

    This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

  • Specifications

    Rated Continuous (RMS) Power @ 14.4 V@ 4 Ω1200 W RMS x 1@ 3 Ω1200 W RMS x 1@ 2 Ω1200 W RMS x 1@ 1.5 Ω1200 W RMS x 1

    Rated Continuous (RMS) Power @ 12.5 V@ 4 Ω1200 W RMS x 1@ 3 Ω1200 W RMS x 1@ 2 Ω1200 W RMS x 1@ 1.5 Ω1200 W RMS x 1

    General SpecificationsFrequency Response6 Hz - 8 kHz (+0, -1dB)S/N Ratio, referred to highest rated power>110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W (Main Channels)>79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>500 / 50 HzDamping Factor @ 2 Ω>250 / 50 HzTHD+N @ Rated Power (Main Channels)<0.03% @ 4 ΩInput Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge2 AWG wireFuse Rating100 A (AFS, AGU or MaxiFuse™)

    Signal ProcessingFilter Mode(s)Low-Pass or High-PassFilter Slope(s)12/24 dB/octaveFilter Frequency Range50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometerYesFilter Defeat FunctionYesInfrasonic Filter30 Hz, defeatableBass Boost EQNoOutput Polarity SwitchYesRemote Subwoofer Level ControlOptional (HD-RLC)Remote Bass EQ Boost ControlNoPass-Through Preamp OutputBuffered

    Physical SpecificationsHeight (H)1.93 in / 49 mmWidth (W)10.74 in / 273 mmDepth (D)7.85 in / 199 mmNet Weight6.6 lb / 2.99 kg
