Mosconi

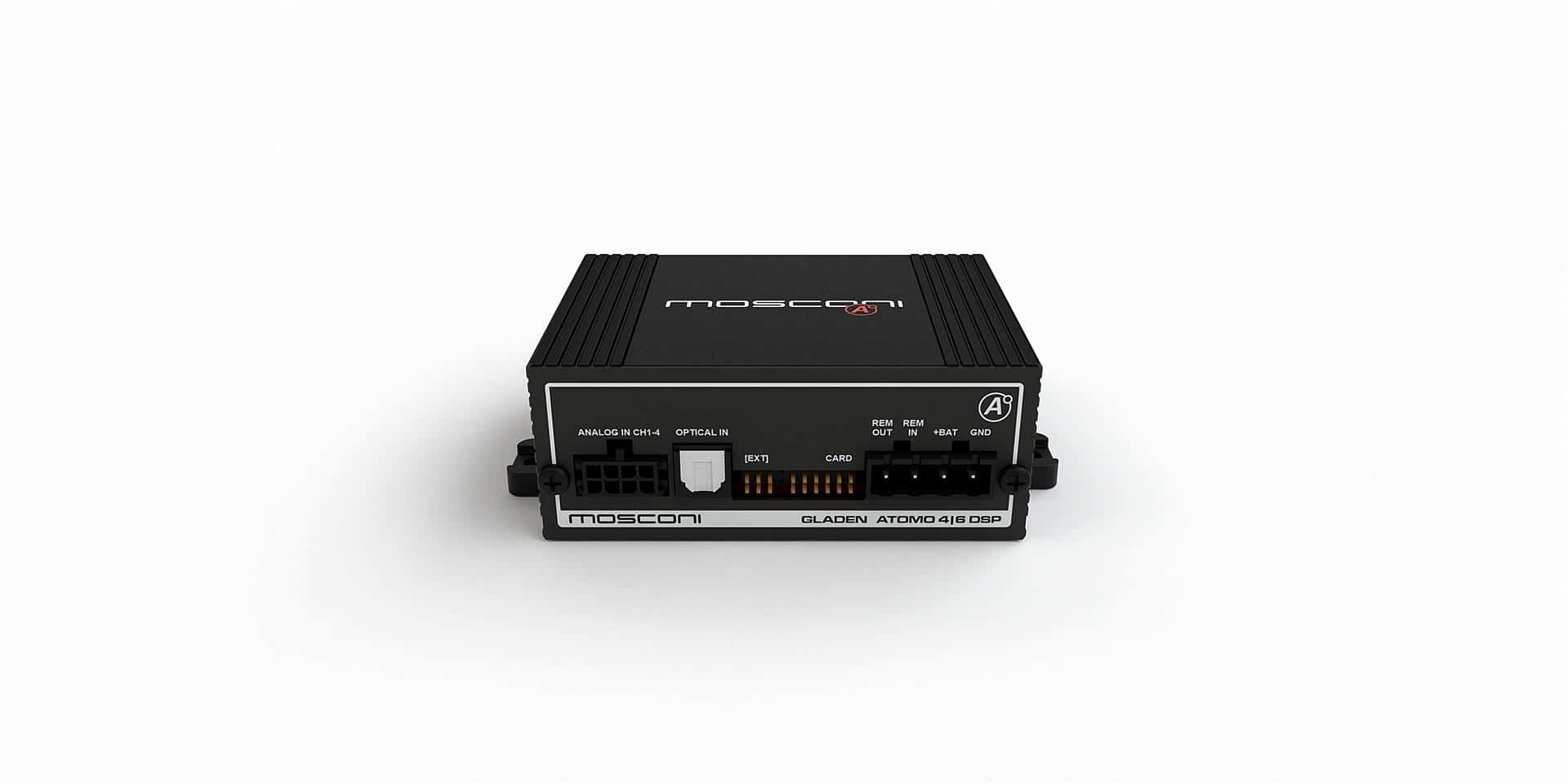

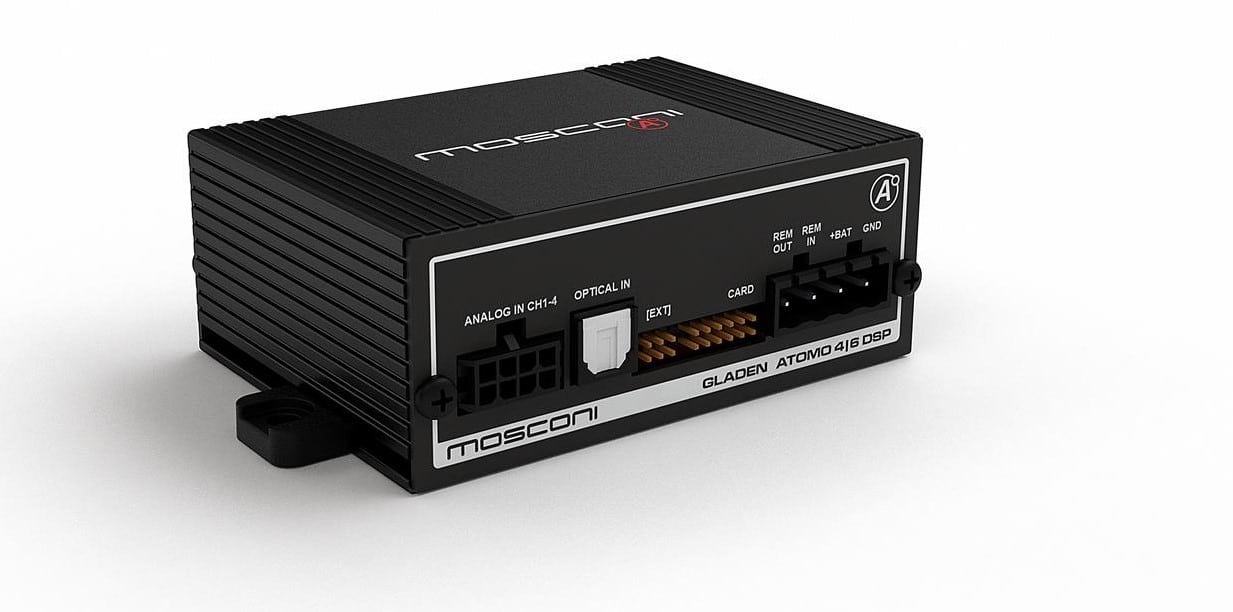

Mosconi Atmo 4TO6 DSP

Mosconi Atmo 4TO6 DSP

Regular price Sale price $599.99 CAD
Sale Sold out
View full details
  • Features

    • Stand Alone DSP
    • Four analog inputs (HighLevel / LowLevel)
    • SP-Dif (optical), BTM, BTS & BTS-LD4C input
    • 6 analog outputs.
    • 12V and 24V vehicles compatible.
    • New 64 bit DSP plattform with dISC functions.
    • Complete integrated measuring system for RTA, timedelay and phase.
    • Easy setup function.
    • Direct RTC connection for volume, sublevel or input volume.
    • Compatible to RC-Can VW, RC-Can uni and EXT4HLin  (8ch. input analog possible).
    • Dimensions 86 x 65 x 34mm
    • Weight 180g
  • Specifications

    Power Supply Voltage8 -32VExternal Fuse1 x 3ACurrent consumption0.14A @ 12V6Analog DSP processed output6 x 2VrmsAnalog input4 x high/low levelLow level + High level input sensitivity range2Vrms (LL) – 12Vrms [6:1] (HL) by defaultInput impedance>15k Ohm (LL) -1k8 Ohm / ~22 Ohm (HL)Low Level Ground ReferenceFull Floating / ~22 OhmAutosense power-onAvailable by High Level, BTL source onlyDigital inputOptical (Toslink)CARD (MOS standard modules and Extended cards)Onboard DSP294.912 MHz – 64 bitOnboard ADO48kHz / 24bit Sample Rate – 107dB S/N ratioOnboard DAC48kHz / 24bit Sample Rate – 106dB S/N ratioRemote Control (optional)RTCDimensions86 x 65 x 34mmWeight180gFinishBlack anodized
