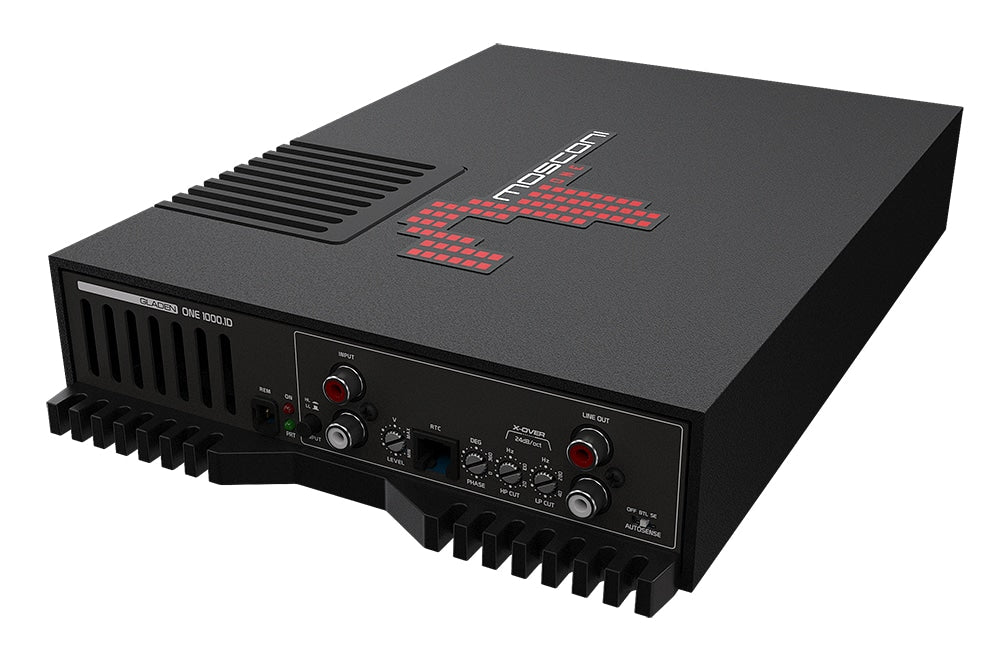

Mosconi ONE 1|1000
Mosconi ONE 1|1000
Sale
Sold out
Share
-
Features
- Mono channel D class amplifier
- Black finishing. Power Rating: 554 Watt @ 4 Ohm < 1%
- THD+N Sn Ratio: > 80 dBA (ref: 1 Watt into 4 Ohm)
- HANDY POWERFUL RANGE
- The smallest line with fresh and dynamic young sound recommended also for OEM applications. Absolutely great features on board like High Level Input with auto-switch on. Besides, thermo controlled fans and Plug & Play wiring harness (optional). Low Level (LL) and High Level (HL) input.
- Also available in 24 Volt
- VERY IMPORTANT NOTE – READ CAREFULLY:
This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.
-
Specifications
Target Powers (@ 4 Ohm)600 WattTarget Powers (@ 2 Ohm)1000 WattInput Sensitivity (Power rating ref)0.2 V ÷ 4 V (Low Level)0.5 V ÷ 10 V (High Level)Xover functions: (always in line)Subsonic Filter: (20 ÷ 100 Hz – 24 dB/oct)Low Pass Filter: (40 ÷ 280 Hz – 24 dB/oct)Special Features:Remote Volume Control (optional)Phase Shift (always in line): 0° ÷ 360°Low Level / High Level imput mode (by switch)Auto Sense (only in High Level mode)Low Level Output (like HLA) Size: 310x200x50 mmWeight2,7 Kg
