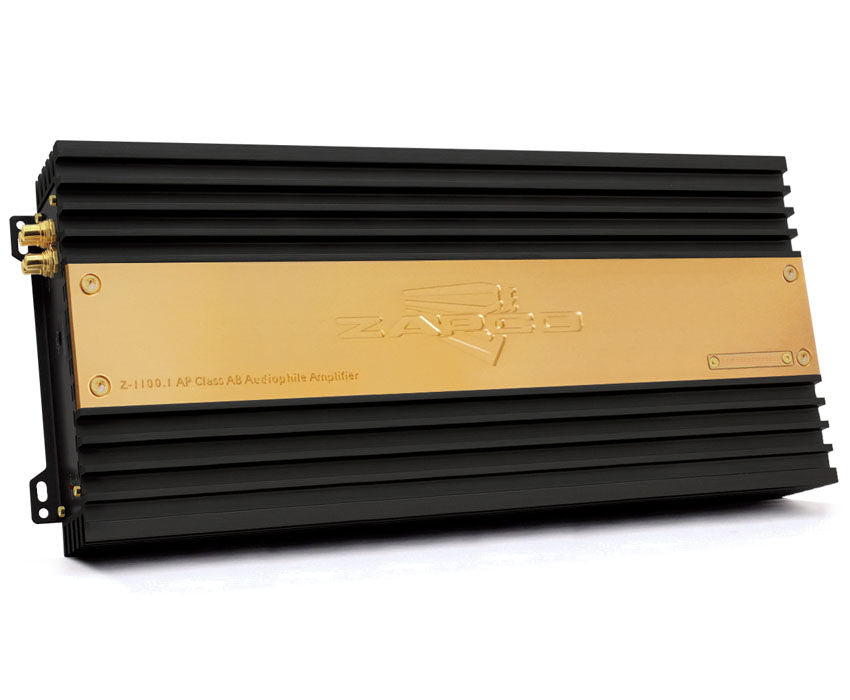

Zapco Z-1100.1 AP

• Class-AB, Full-Range Mono Amplifier
• Signal to noise ratio of over 110dB
• Coupled the output drivers
• Highest HFE (Gain) Sanken selected output devices
• Differential balanced input stage
• 0.1% resistors for lowest possible noise floor
• TI LME49720 (BJT) op-amps on the inputs
• TI LME49720 (BJT) op-amps in the signal path
• WIMA MKS2 series caps in the signal path
• Extremely low ESR caps throughout
• Proprietary patented RCA connectors

• Power @ 4Ω: 650 watts
• Power @ 2Ω: 1100 watts
• Power @ 1Ω: 1600 watts *
• THD @ Rated Power  < 1%
• Signal to Noise Ratio > 110dB
• Frequency Response 10Hz to 30,000Hz ±1dB
• Input Sensitivity 1v to 9v
• Dimensions in mm: 190(W) x 62(H) x 480(L) Overall: 190(W) x 62(H) x 508(L)

​

*AP amplifiers are stable at 1Ω only when used with music signal and with proper ventilation.
