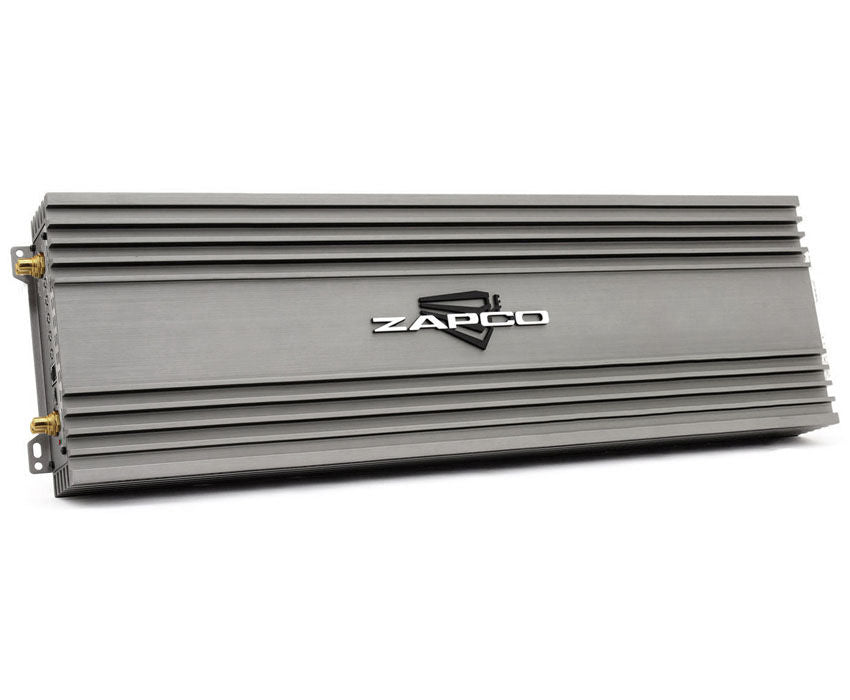

Zapco Z-3KD II
Zapco Z-3KD II
Sale
Sold out
Share
-
Features
Mono Class D Linkable, bass amplifier,
Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)
PWM MOSFET power supply
24 dB Variable low pass (LPF) crossover
12 dB Variable bass boost equalization
0 – 180 degree variable phase shift
24 dB Variable subsonic filter
Selectable master and slave operation for Linked (strapped) amplifier operation
-
Specifications
- Power @ 4Ω: 900 watts
- Power @ 2Ω: 1800 watts
- Power @ 1Ω: 3000 watts
- Linked @ 2Ω: 6000 Watts
- THD @ Rated Power < 0.05%
- Signal to Noise Ratio > 90dB
- Damping factor: > 350
- Efficiency: 86%
- Input Sensitivity .2v to 8v
- Dimensions in mm: 190(W) x 62(H) x 620(L) Overall: 190(W) x 62(H) x 657(L)
